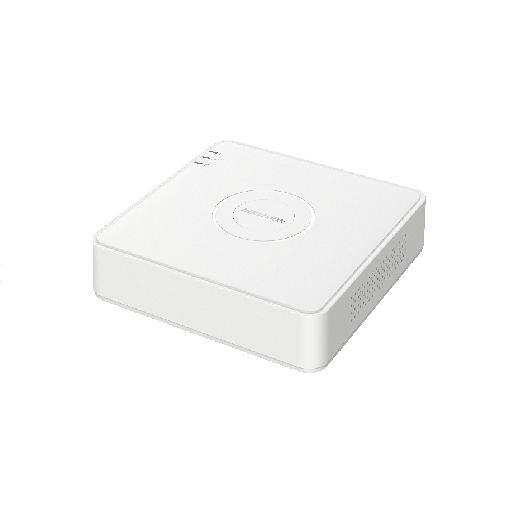

DVR Hikvision TurboHD iDS-7108HUHI-M1/S ACUSENSE DVR 8 analog channels and 1 HDD 1U DVR,H.265 Pro+ video compression improves encoding efficiency, and reduces data storage costs,Support 8 MP@8 fps encoding,1 SATA interface (up to 10 TB capacity),Human/Vehicle Analysis Up to 4-ch, Analog Video
| DVR Hikvision TurboHD iDS-7108HUHI-M1/S ACUSENSE DVR 8 analog channels and 1 HDD 1U DVR |
| H.265 Pro+ video compression improves encoding efficiency |
| and reduces data storage costs |
| Support 8 MP@8 fps encoding |
| 1 SATA interface (up to 10 TB capacity) |
| Human/Vehicle Analysis Up to 4-ch |
| Analog Video Input:8-ch;BNC interface (1.0 Vp-p |
| 75 Ω) |
| supporting coaxitron connection HDTVI Input:8 MP@15 fps |
| 8 MP@12.5 fps |
| 3K@20 fps |
| 5 MP@20 fps |
| 5 MP@12 fps |
| 4 MP@30;fps |
| 4 MP@25 fps |
| 3 MP@18 fps |
| 1080p@ 30 fps |
| 1080p@25 fps |
| 720p@60 fps |
| 720p@50 fps |
| 720p@30 fps |
| 720p@25 fps AHD Input:5 MP@20 fps |
| 4 MP@25 fps |
| 4 MP@30 fps |
| 1080p@25 fps |
| 1080p@30 fps |
| 720p@25 fps |
| 720p@30 fps HDCVI Input:4 MP@25 fps |
| 4 MP@30 fps |
| 1080p@25 fps |
| 1080p@30 fps |
| 720p@ 25 fps |
| 720p@30 fps CVBS Input PAL/NTSC HDMI Output:1-ch |
| 4K (3840 × 2160)/30Hz |
| 2K (2560 × 1440)/60Hz |
| 1920 × 1080/60Hz |
| 1280 ×1024/60Hz |
| 1280 × 720/60Hz; VGA Output 1-ch |
| 1920 × 1080/60Hz |
| 1280 × 1024/60Hz |
| 1280 × 720/60Hz Video Output Mode HDMI/VGA simultaneous output Audio Input:1-ch |
| RCA (2.0 Vp-p |
| 1 KΩ) |
| 8-ch via coaxial cable Total Bandwidth 128 Mbps;Remote Connection 64; Network Protocol:TCP/IP |
| PPPoE |
| DHCP |
| Hik-Connect |
| DNS |
| DDNS |
| NTP |
| SADP |
| NFS |
| iSCSI |
| UPnP™ |
| HTTPS |
| ONVIF;Network Interface 1 |
| RJ45 10/100/1000 Mbps self-adaptive Ethernet interface;Wi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface; SATA 1 SATA interface Capacity Up to 10 TB capacity for each disk USB Interface Rear panel: 2 × USB 2.0 |
| Working Temperature -10 °C to +55 °C |
| Dimension: 200 × 200 × 45 mm |
| Weight ≤ 1 kg . |
