Conexiune
USB connector type	Micro-USB B,USB Type-A,USB Type-C
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI
Number of computers controlled	2
DisplayPort version	1.2
HDMI ports quantity	2
HDMI version	2.0

Performanță

Maximum resolution 3840 x 2160 pixels Chipset Parade - PS176, VLI - VL170, Terminus - FE1.1S Number of displays supported 1 HD type 4K Ultra HD Daisy chain No Video bandwidth 60 Hz Audio channels 7.1 Data transfer rate (max) 0.48 Gbit/s

Design

Product colour Black Rack mounting No LED indicators Yes Mean time between failures (MTBF) 50000 h Push button Yes Hot keys No

afișaj

Built-in display No On Screen Display (OSD) No

Managementul energiei

USB powered Yes

Conditii de mediu

Operating temperature (T-T) 5 - 55 °C Storage temperature (T-T) -20 - 50 °C Operating relative humidity (H-H) 20 - 80 %

Greutate şi dimensiuni

Weight 200 g Width 138 mm Depth 70 mm Height 15 mm

Datele de ambalare

Package weight 250 g Package width 120 mm Package depth 172 mm Package height 85 mm

Conţinutul de ambalaje

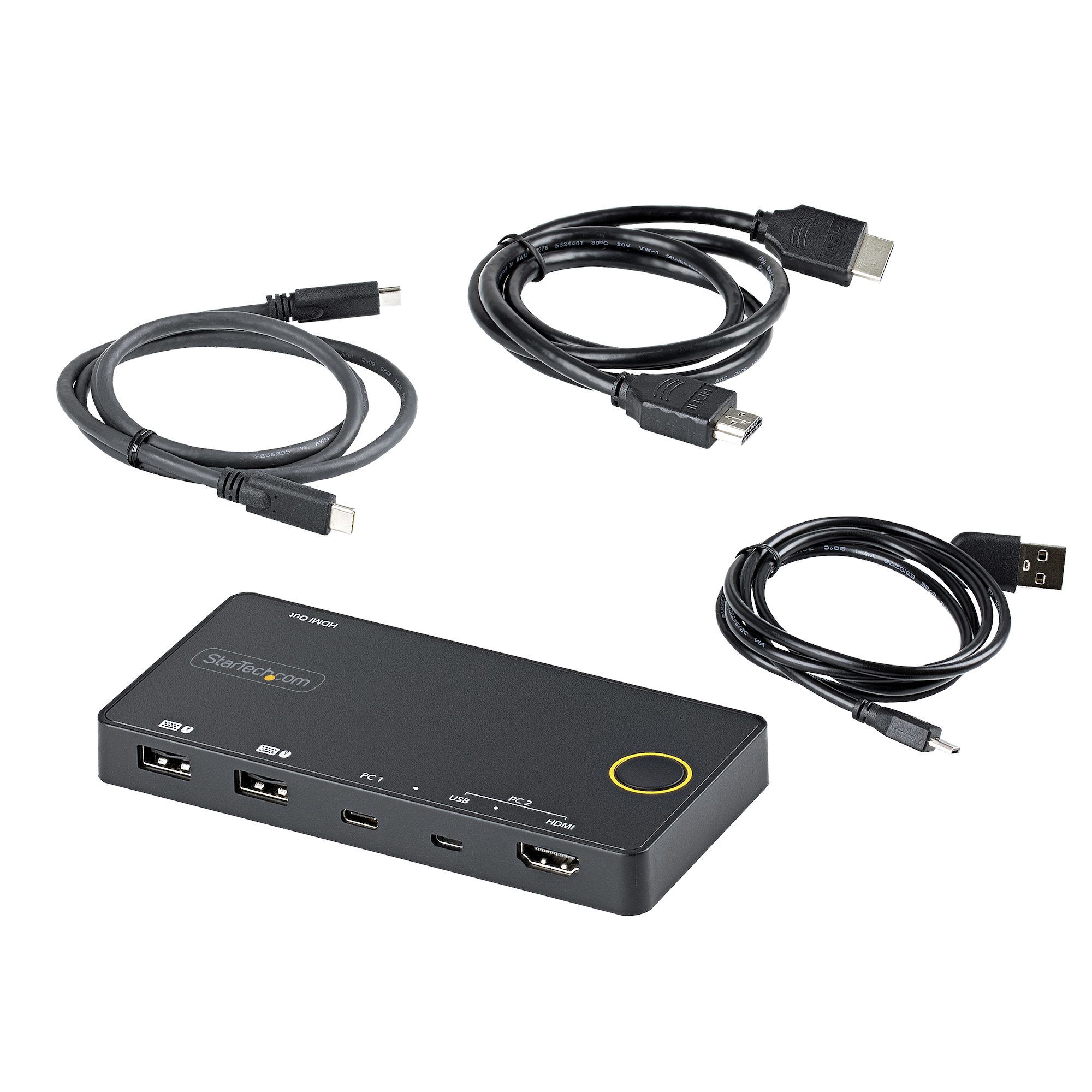

Cables included HDMI,Micro-USB,USB Type-C to USB Type-C Quick installation guide Yes

Date logistice

Master (outer) case width 410 mm Products per master (outer) case 20 pc(s) Master (outer) case height 370 mm Master (outer) case length 470 mm Harmonized System (HS) code 85176200

Alte caracteristici

IP control No
